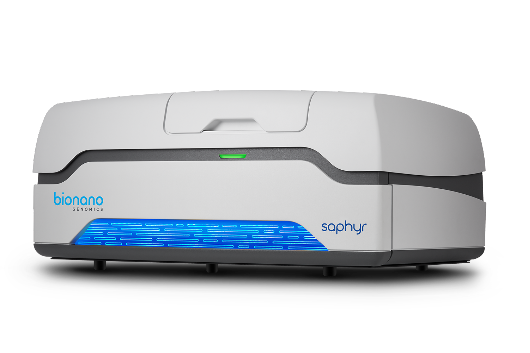

Saphyr Instrument

PRODUCT INFORMATION
Product Saphyr® System with Bionano Access Server, 1 color
Catalog Number(s) 90067
Description

The Bionano Saphyr System detects structural variations in an unbiased manner at much higher sensitivities than sequencing-based technologies, down to 500 bp resolution and routinely at 5% variant allele fraction.

CONTENTS
Saphyr Instrument 1 each
Monitor 1 each
Keyboard 1 each
Mouse 1 each
Instrument Controller 1 each
Bionano Access Server 1 each
Accessory Kit 1 each

Saphyr Chips

Product Information
Product Saphyr Chips
Catalog Number(s) 20440 Saphyr Chip G3.3
20366 Saphyr Chip G2.3
20367 Saphyr Chip G2.2
20319 Saphyr Chip G1.2
Description

Each Bionano Saphyr Chip contains hundreds of thousands of parallel nanochannels, each of which is just wide enough to allow a single linearized DNA molecule to travel through. Long, labeled DNA molecules are linearized and immobilized in the nanochannels, where they are directly imaged by the Saphyr instrument.

Saphyr Chip G3.3 is our most recent design for the Saphyr Chip. Combined with the new G3 chip clip and plugs for enhanced evaporation control, each of its 3 flowcells can collect a maximum of 5,000 Gbp of throughput. Each of the 3 flowcells is independent of the others and can be loaded with a distinct sample.

Saphyr Chips G2.3 and G2.2 contain three and two flowcells each, respectively. These are our previous generation Saphyr chips, used with the Gen 2 chip clip and plugs. These chips can collect a maximum throughput of 5,000 Gbp per flowcell.

The Saphyr Chip G1.2 was our first generation Saphyr chip and contains two flowcells. Combined with the Gen 1 chip clip, this chip is used only with the Gen 1 Saphyr System (PN 60239). These chips can collect a maximum throughput of 1,300 Gbp per flowcell.

Product Details
Part Number Product Name Number of Flowcells Total Throughput Storage Temp Chip Clip/Plugs
20440 Saphyr Chip G3.3 3 15,000 Gbp (3 x 5,000 Gbp) 4°C 60446 Chip Clip for G3.3 chips
20366 Saphyr Chip G2.3 3 15,000 Gbp (3 x 5,000 Gbp) 4°C 60374 Chip Clip for G2 chips
20367 Saphyr Chip G2.2 2 10,000 Gbp (2 x 5,000 Gbp) 4°C 60374 Chip Clip for G2 chips
20319 Saphyr Chip G1.2 2 2600 Gbp (2 x 1,300 Gbp) 4°C 60309 Chip Clip for G1 chips

Compute Servers

Product Information
Product Compute Servers
Catalog Number(s) 80013 Saphyr Compute Server
80014 Bionano Compute Server
Description

The Saphyr Compute Server offers cluster-like performance in an affordable, compact solution, and comes pre-installed with our Bionano Solve compute software. Bionano Solve performs all post-run analysis jobs, including automated de novo assembly, rare variant analysis, variant annotation, copy number calling, hybrid scaffolding, etc. A simple web-based interface enables integration into virtually any network setup.

The Bionano Compute Server is a standalone, secondary compute server that works in parallel with the Saphyr Compute Server. Additional Bionano Compute Servers can be added for increased data processing power.
